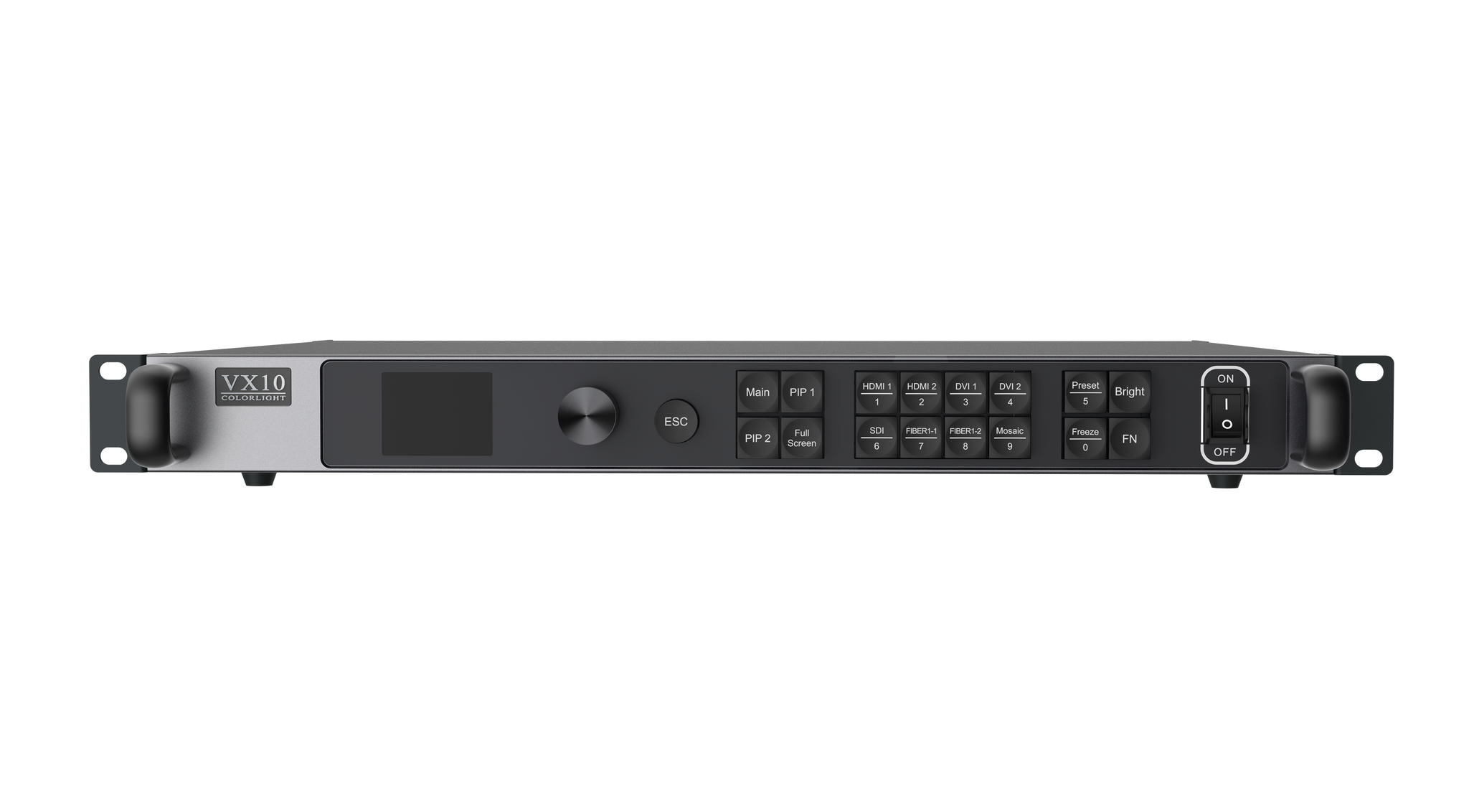

The Colorlight VX10 is a video controller that integrates the functions of UHD image processing and LED display control. The device supports 8bit and 10bit video processing and is capable of 4k and 2k video inputs. It has a maximum loading capacity of 6.5 million pixels and supports RJ45 and fiber outputs.
https://en.colorlightinside.com/
BUILT-IN SCALING (AUTO FIT CONTENT TO WALL): YES

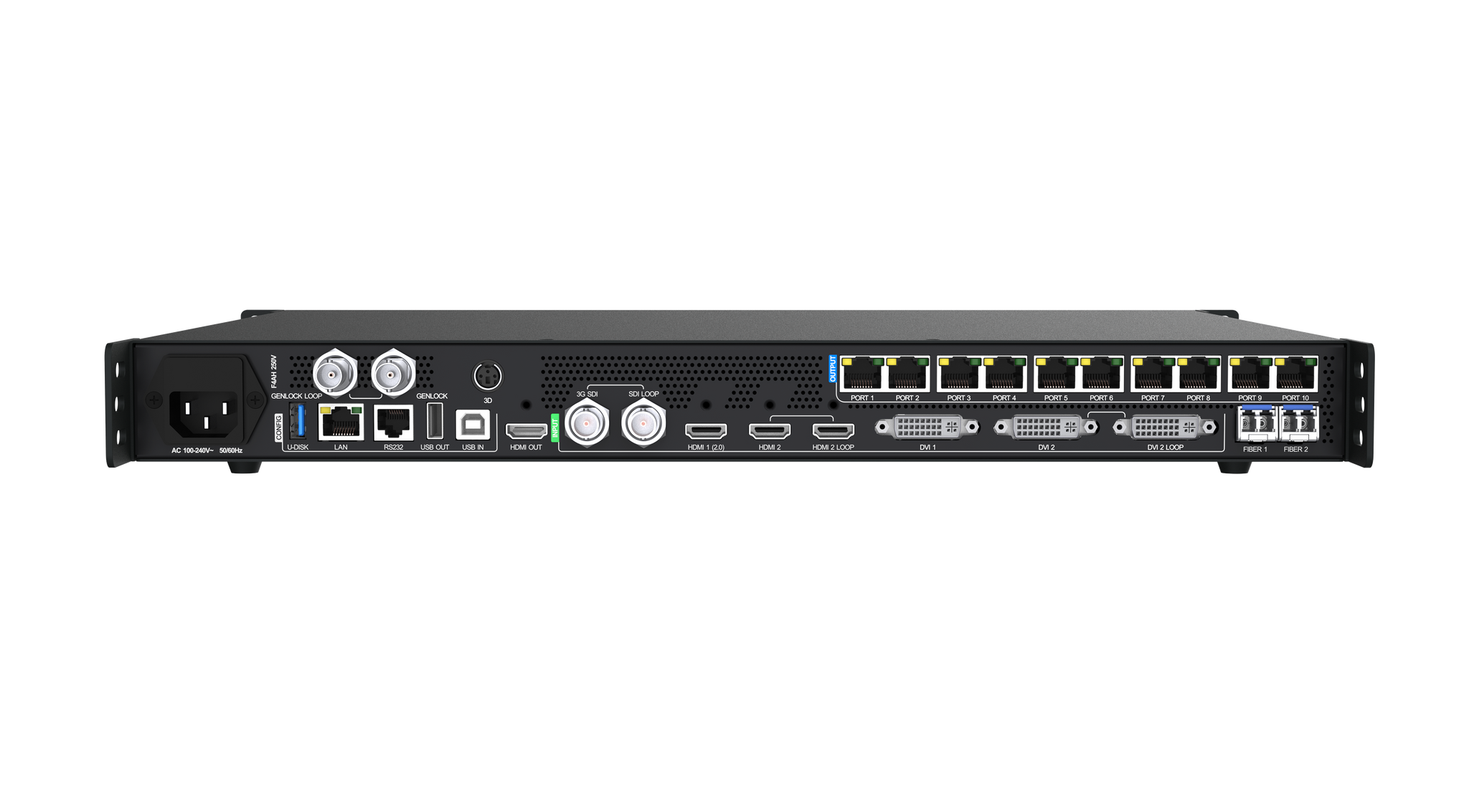

INPUTS: 6 - HDMI 1.4, HDMI 2.0, DVI, 3G-SDI, OPT
OUTPUTS: LED OUTPUTS - 10
GENLOCK: Yes
VIDEO LOOP: HDMI LOOP, SDI LOOP
MONITOR OUT: HDMI 1.3
BUILT-IN FIBER SLOTS: YES (1 PRIMARY & 1 BACKUP)
WINDOWS/LAYERS: 3 (via PIP)
CONTROL:
ETHERNET (For communicating via network) / USB (PC Control)
LOADING CAPACITY:
MAX PIXELS PER LED OUT (PORT): 650,000 pixels (8bit)
TOTAL PIXELS: 6.5 million pixels
MAXIMUM INPUT RESOLUTION: 4096 x 2160 @ 60Hz
MAX OUTPUT WIDTH/HEIGHT: 16,384 pixels x 8,192 pixels (W x H or H x W)
VX10 QUICK START GUIDE
DOWNLOAD iSet PROFESSIONAL SOFTWARE FOR SETTINGS AND CONTROL
